This system uses pressed steel bottom cups welded at spacing of 500mm or 1000 mm onto the 40 NB steel pipes paired with malleable cast top cups, and a pin welded at the top of these cups which admit ledger blades of the ledgers and lock on to the ledgers when top cup is twisted downwards.
This system is very versatile and is used as access as well as load bearing scaffolds.

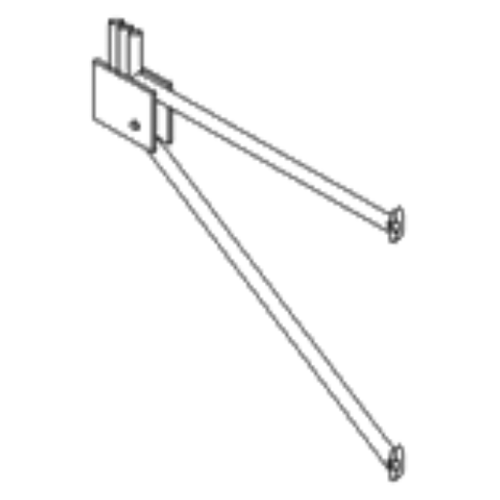

These brackets are versatile and easy to use. They are capable of supporting more than 400 kgs. easily
| Dimension Between The Post (x) | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Size (Hollow) | Ø48.3 | |||||
| All Demensions are in MM | ||||||

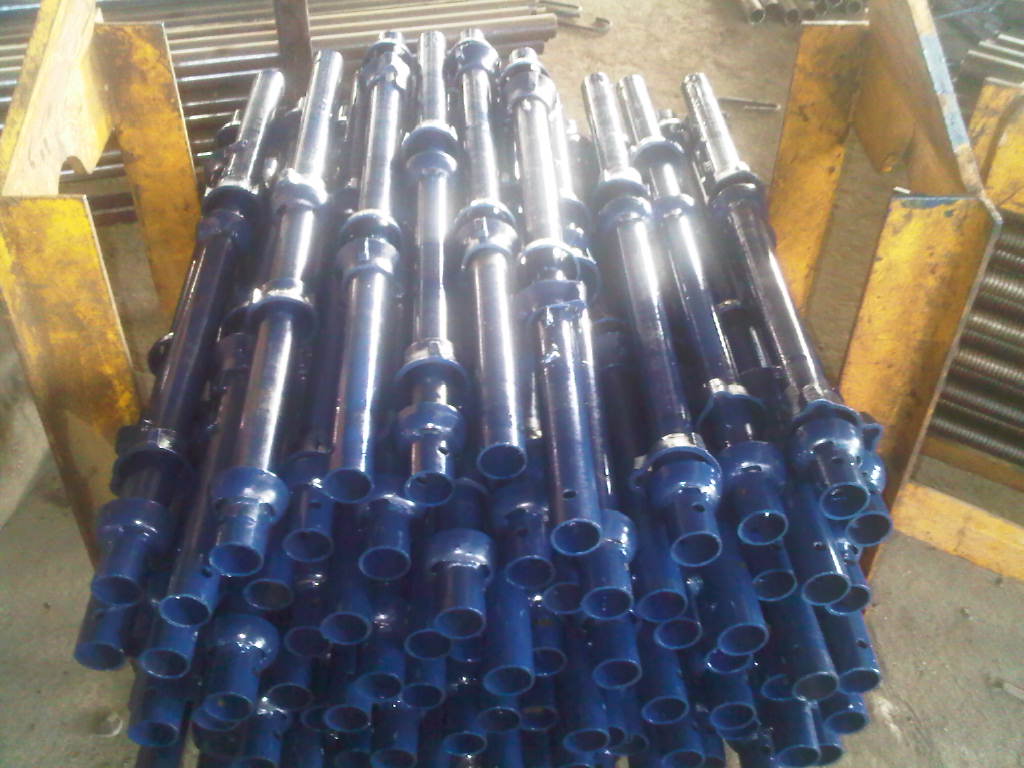

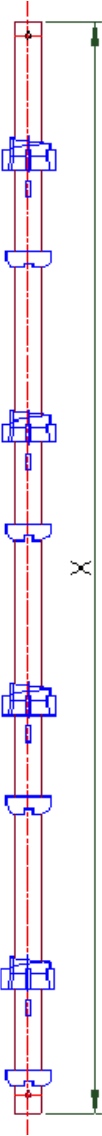

Cuplock Standards/Verticals are manufactured in various sizes for access and support. All the basic sizes have cups welded at 500mm or 1000mm.
The captive mobile upper Cups are made of Malleable Casting/SG Iron Casting to endure rough site handling and welded bottom cups are pressed from deep drawn steel. The access standards are connected with the upper standards in vertical position with the help of spigots.
| Dimension Between The Post (x) | 1000 | 1200 | 1500 | 1800 | 2000 | 2500 |
| Size (Hollow) | Ø48.3 | |||||
| All Demensions are in MM | ||||||

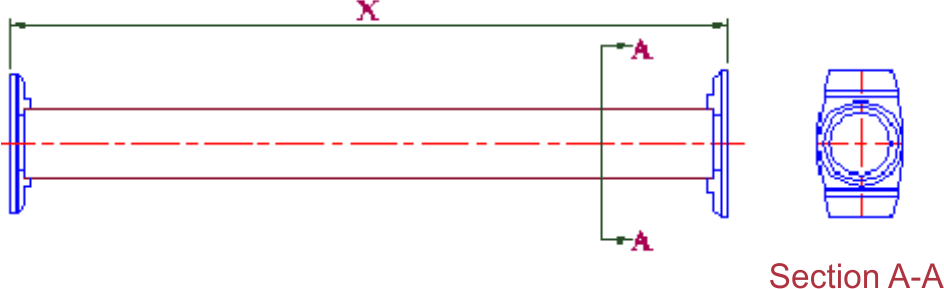

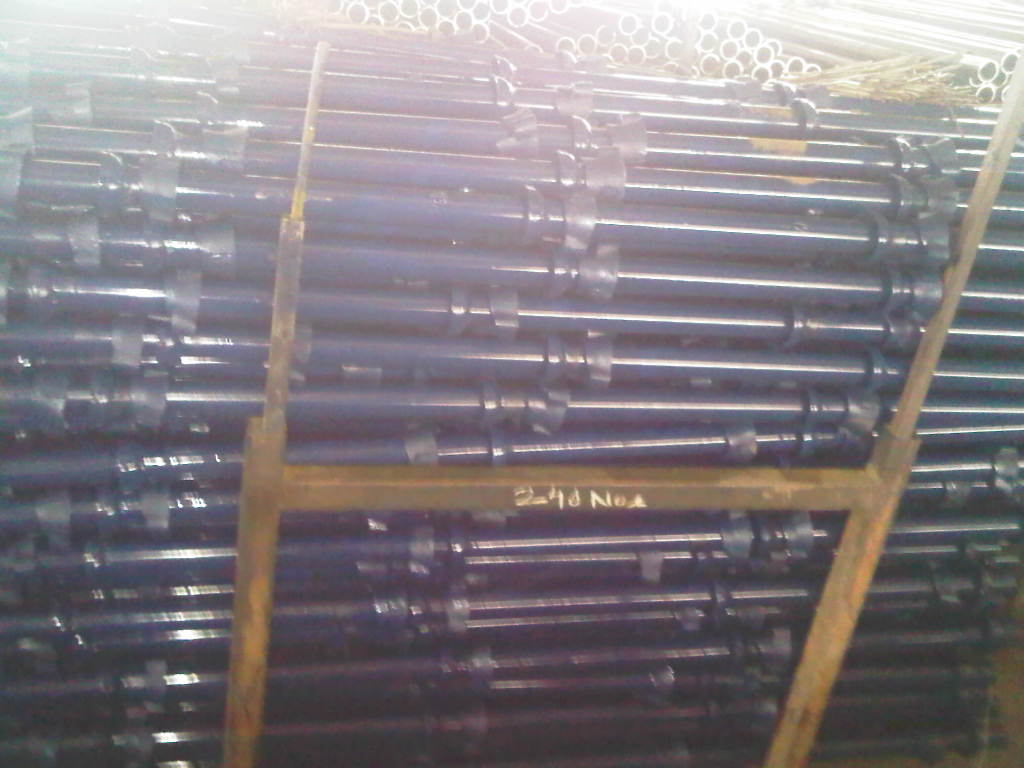

All Ledgers/Horizontals have forged blade welded at the ends with minimum projections to avoid damage. Each component locates itself in the Cup joint on the Standard/Vertical.
Ledgers/Horizontals are available in various sizes to suit customer needs, depending on loading factors in support and wide range access requirements.

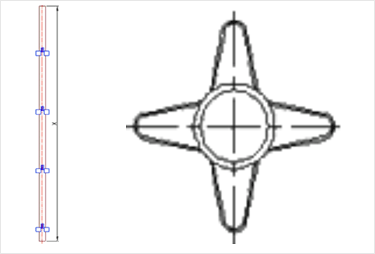

Wedgelock is a modular System Scaffold, with wedge fixing for all access Scaffold requirements. The wedge fixing of the ledgers and transoms gives a simple and fast means of erecting access scaffolding without loose parts.
Rigid 4 way Fixing gives a positive location without movement, spigot and Wedge fitting on the Standard to give guaranteed Vertical alignment.
| Dimension Between The Post (x) | 1000 | 1500 | 2000 | 3000 | ||
| Size (Hollow) | Ø48.3 | |||||
| All Demensions are in MM | ||||||

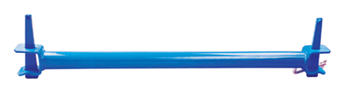

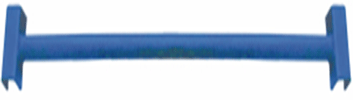

Ledgers are horizontal tubes which connect between the standards. Transoms rest upon the ledgers at right angles. Main transoms are placed next to the standards, they hold the standards in place and provide support for boards; intermediate transoms are those placed between the main transoms to provide extra support for boards
| Dimension Between The Post (x) | 1000 | 1250 | 1500 | 1800 | 2500 | |
| Size (Hollow) | Ø48.3 | |||||
| All Demensions are in MM | ||||||
These give additional support to the structure by placing them at different levels horizontally from one ledger to another. Sizes available are same of ledgers. Available in various standard lengths to suit your requirements.
| Dimension Between The Post (x) | 1000 | 1250 | 1500 | 1800 | 2500 | |
| Size (Hollow) | Ø48.3 | |||||
| All Demensions are in MM | ||||||

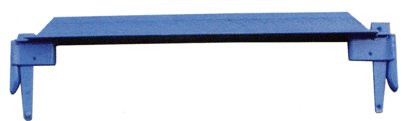

| Dimension Between The Post (x) | 1000 | 1250 | 1500 | 1800 | 2500 | |
| Size (Hollow) | 40x40x5 | |||||
| All Demensions are in MM | ||||||

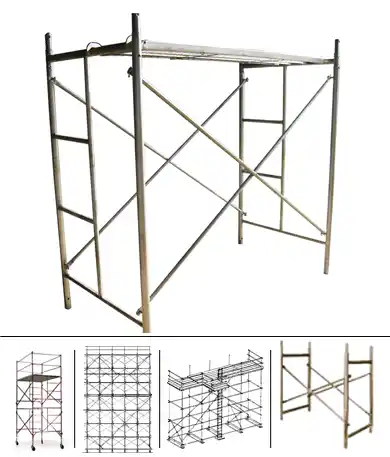

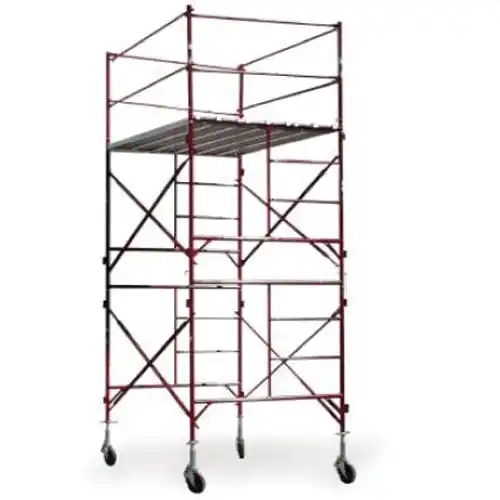

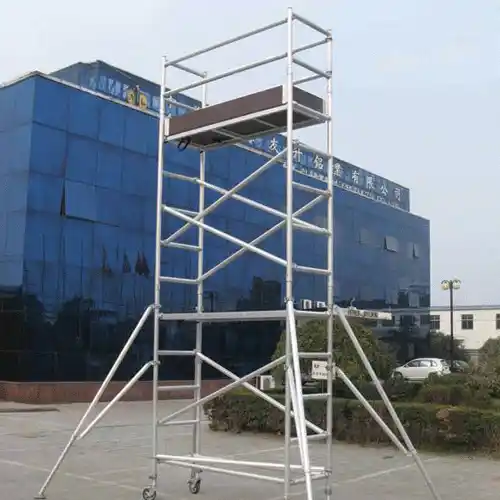

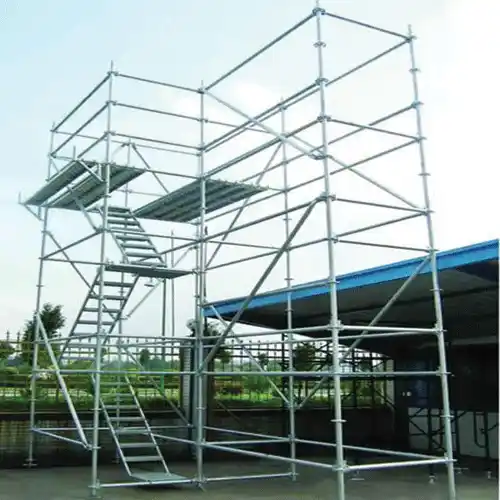

H-Frames are ideal as scaffolding for wall-plastering and support staging for Centring of high slabs, consists of welded frame of 40 NB Vertical and Horizontal of 40/32 NB pipe. Connected by Cross Bracings made out of angles or pipes. H-Frames are available in 2400, 2000, 1500 mm heights and 1200, 1000, 1800, 900 mm widths.

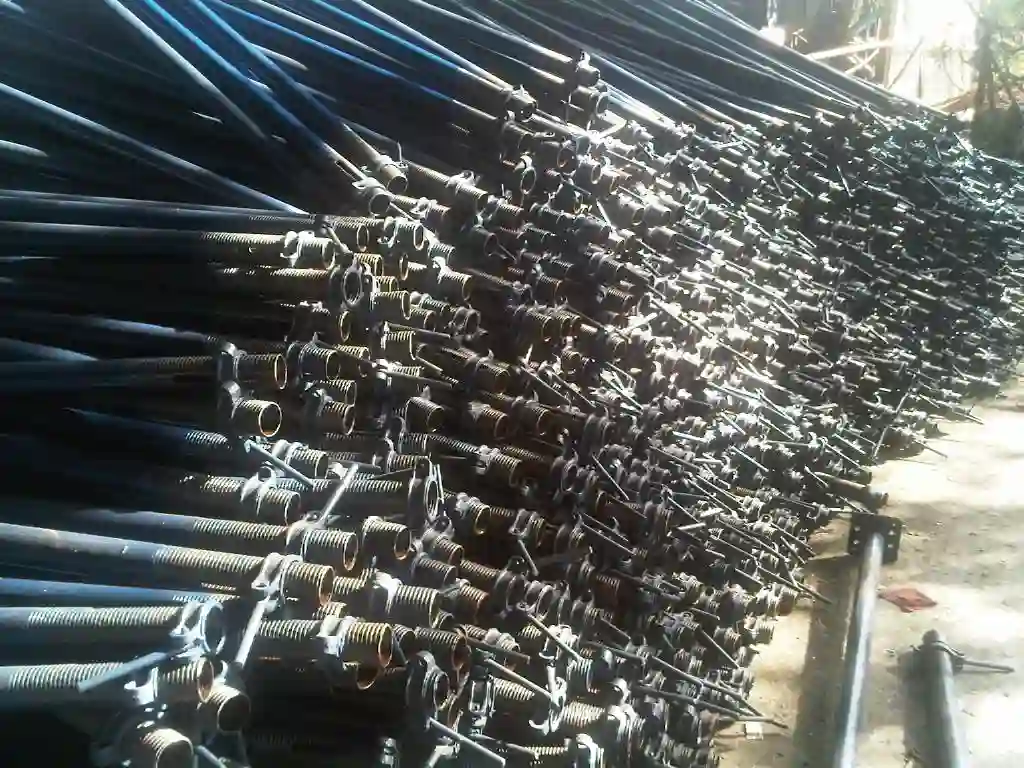

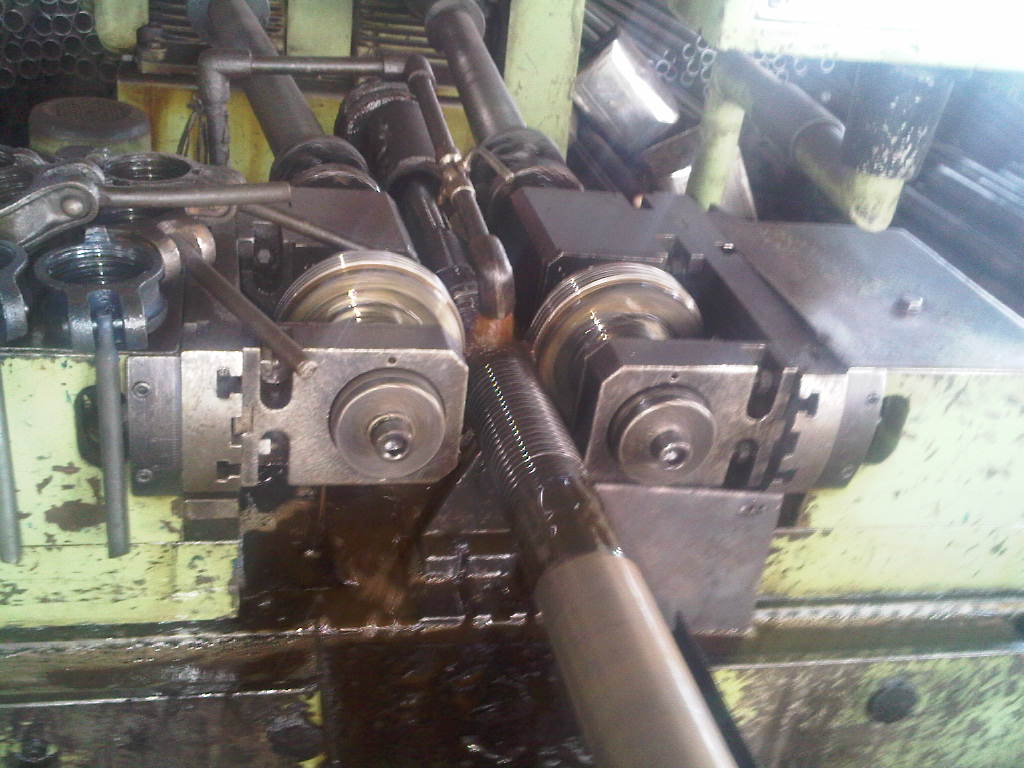

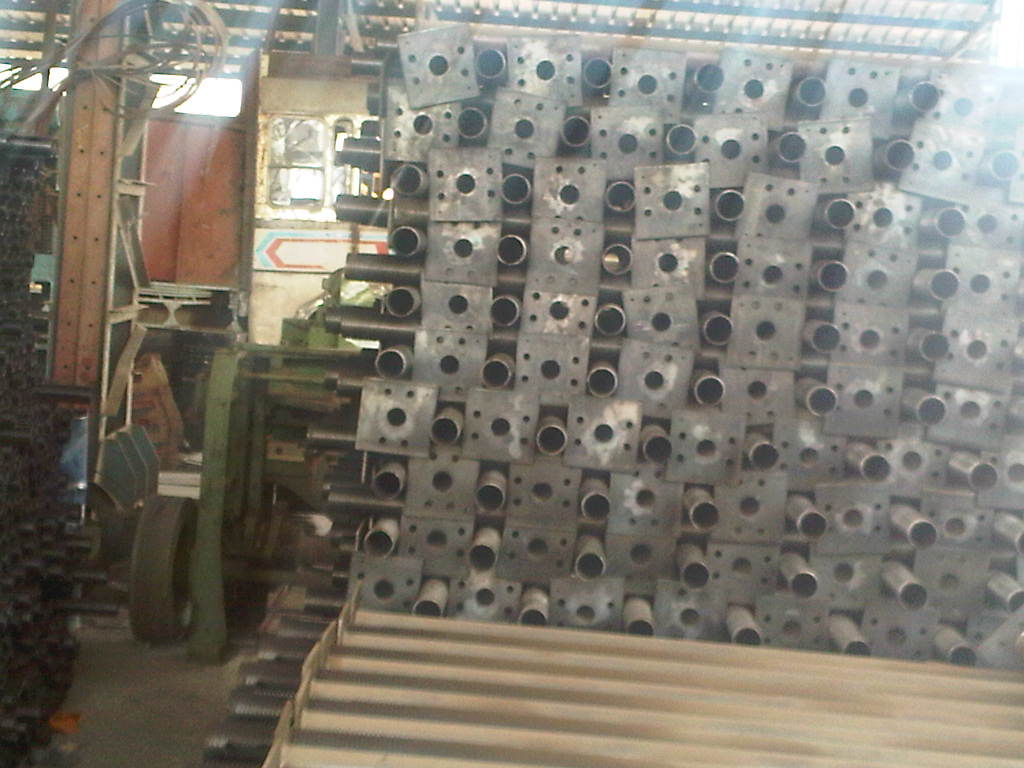

Props are manufactured from top quality, continuously welded steel tubes, 150 x 150 x 6mm Head and Base plates welded on to inner (40 NB) & Outer (50 NB) members, having matching holes for fastening of props on top of each other to gain additional heights. Center hole is provided to insert stirrup head fitment or U head to hold wooden or steel bearers of slab centering. Nail holes are provided in Head and Foot plates for nailing wooden runners/bearers on to props. Quick and Large adjustments in height can be made by inserting Lock pin into holes provided in the inner member and fine adjustments are made by rotating the malleable iron nut on the outer member.

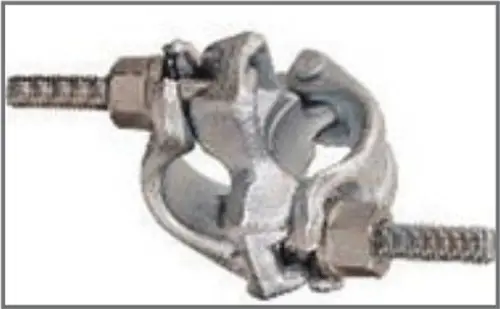

Size : 48mm, 51mm
Min. Slip Load : 12.5 KN
Min Distortion Load : 30 Kn

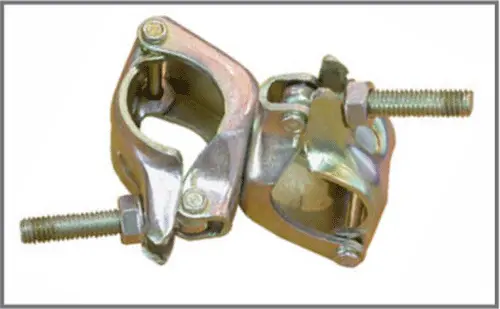

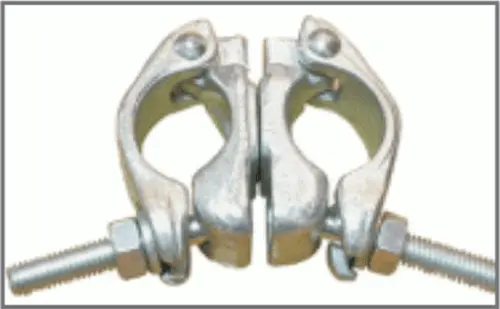

Size : 48mm, 51mm.
Min. Slip Load : 12.5 KN.
Min. Distortion Load : 17 KN
Size : 48mm & 51mm.
Min. Slip Load : 12.5 KN
Min. Distortion Load : 2.30 KN

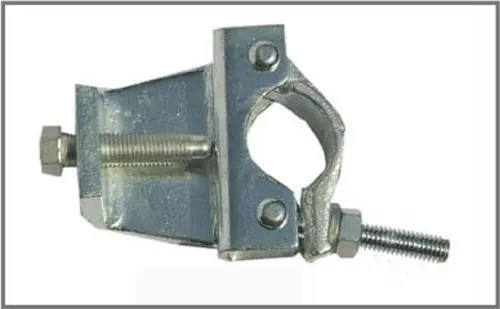

Size : 48mm.
Min. Slip Load
X axis - 10 KN per pair.
Y axis - 30 KN per pair.
Z axis - 6.5 KN per pair

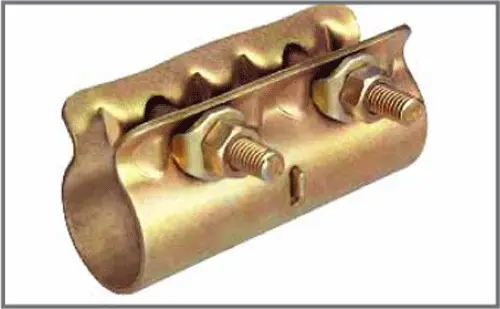

Size : 48mm & 51mm.
Min. Slip Load : 6 KN
Min. Distortion Load : 19 KN
Size : 48mm, 51mm.
Min. Slip Load : 12.5 KN.
Min. Distortion Load : 17 KN

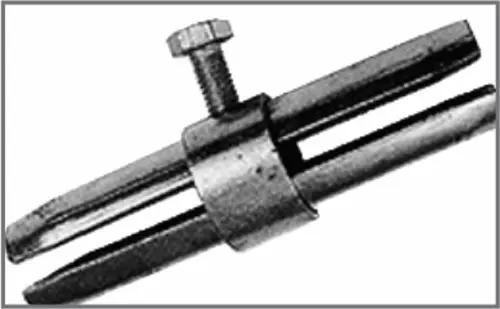

Made Out of 5mm flats, used to connect 40NB pipes in horizontal positions.

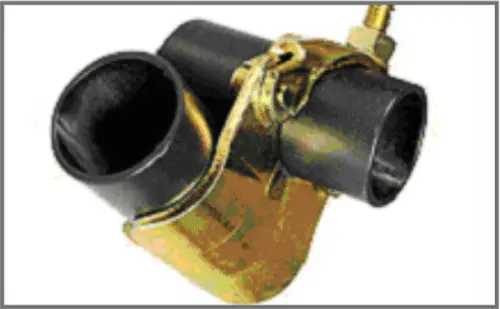

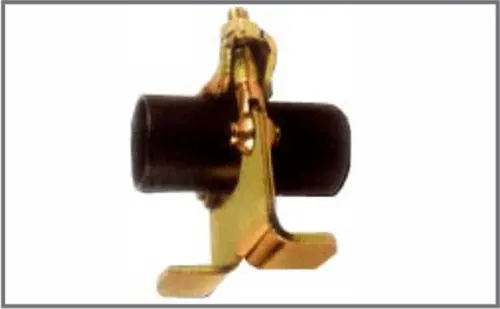

It is used to hold toe board brackets in place by coupling itself to the standards.

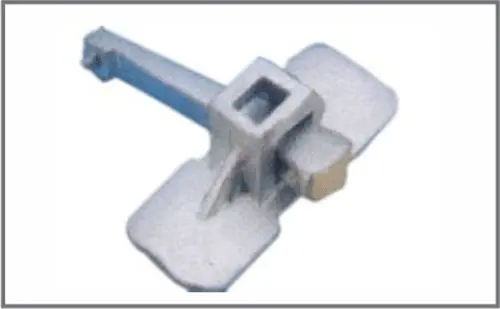

Are versatile, in usage of tie rods being fastened using unthreaded rods also. The wedge when lifted up admits 8mm rods/ tor steel which locks on when the wedge is hammered. The body is nail hammered to the ply form.

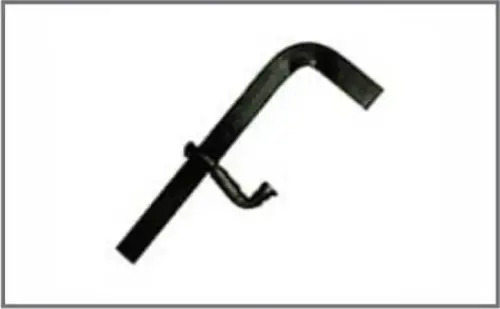

Widely Used in Construction to secure timber runners at fixed dimensions.
Scaffolding Jaali is made from mild steel square tubes and is used in all the constructions sites in India
Size - 38 x 225 x 3980 mm
(other sizes also available)
Material - Radiate pine, Glue - WBP
Waterproof paint coat at both ends

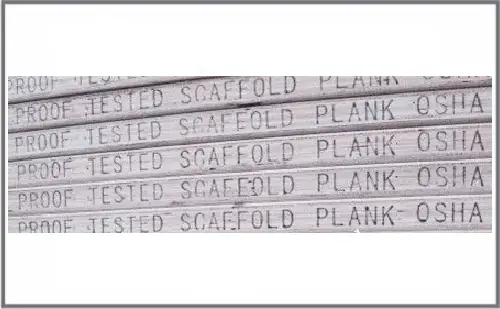

Marking - OSHA proof tested

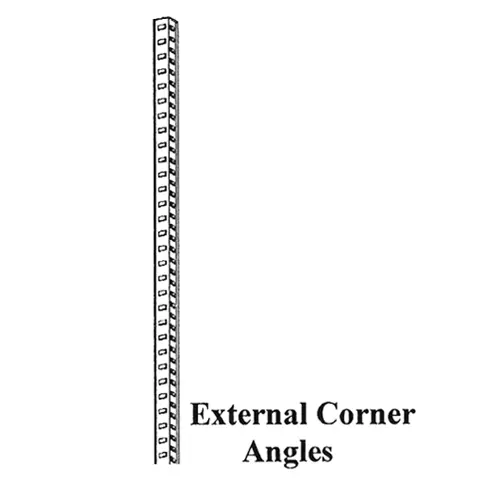

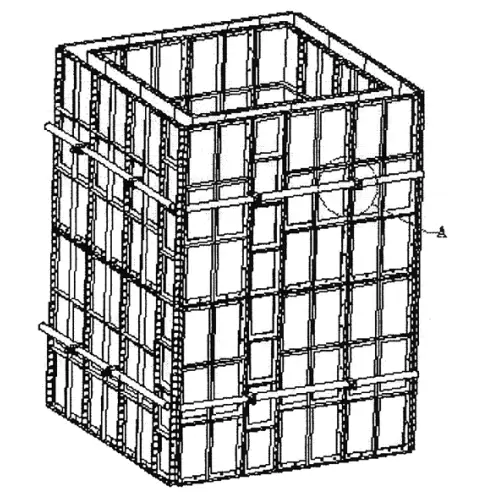

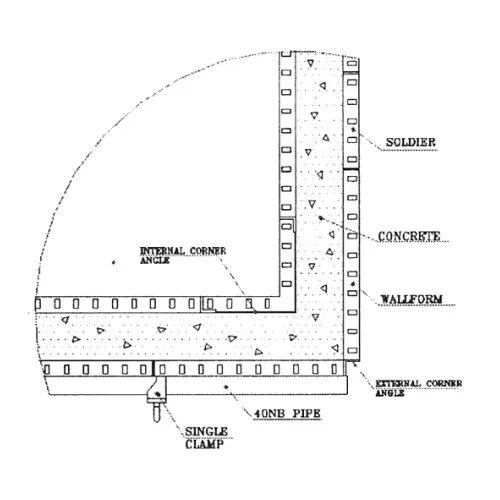

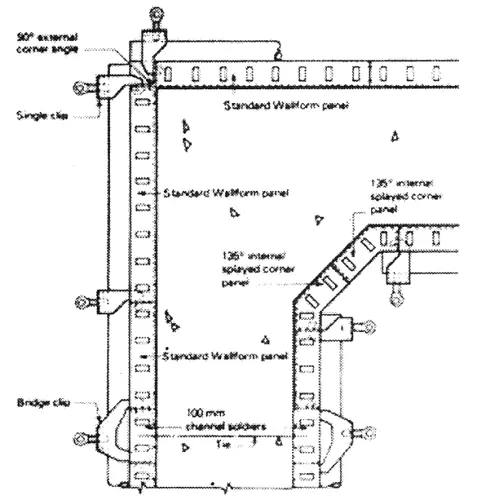

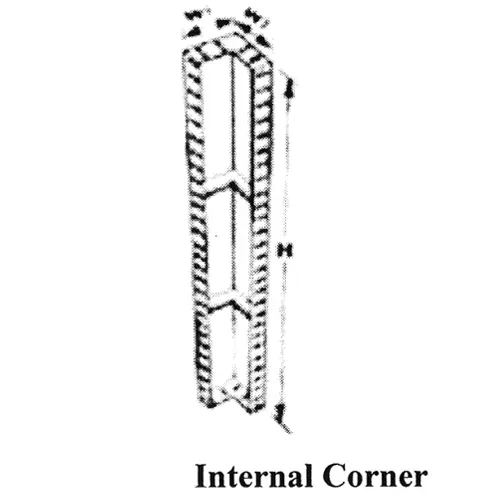

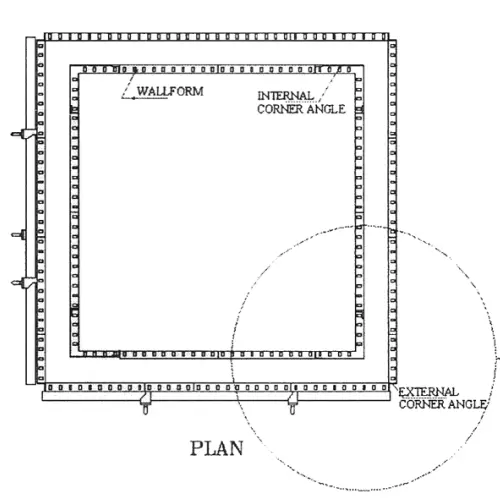

Typical wall form arrangement using, Internal corner angles, External corner angles, Soldiers, Tube clips & 40 NB pipe

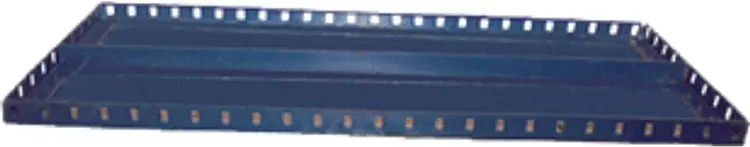

This is usually tailor made and is used for casting floor slabs, beams and walls. It is easy to assemble and dissemble and also has excellent concrete quality. As it is a large steel panel, the sub material costs can be reduced. This structure functions well and reduces risk of damages and loss of materials. Due to its large steel form , separate lifting tool is required for moving and installing it.

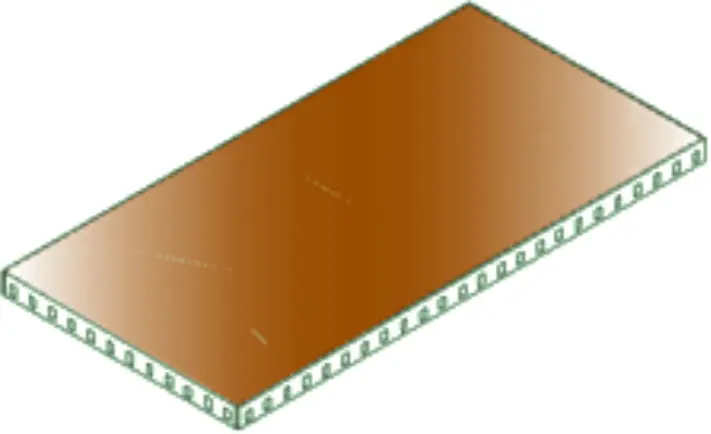

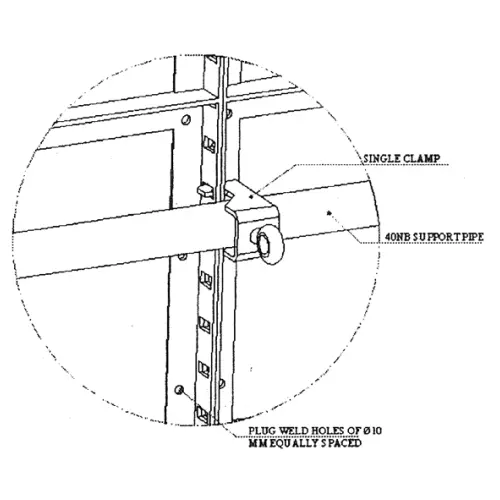

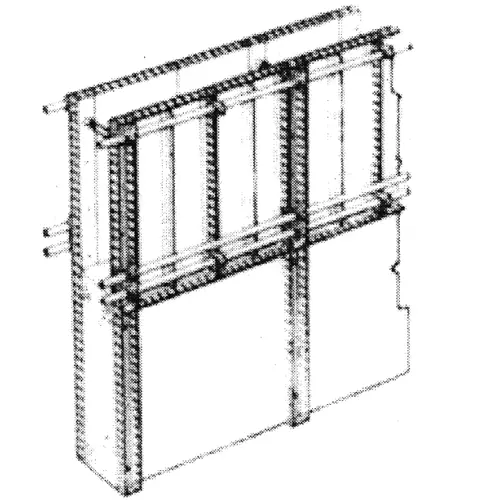

Wallform using plywood embedded inside the steel frame for proper alignment and durability

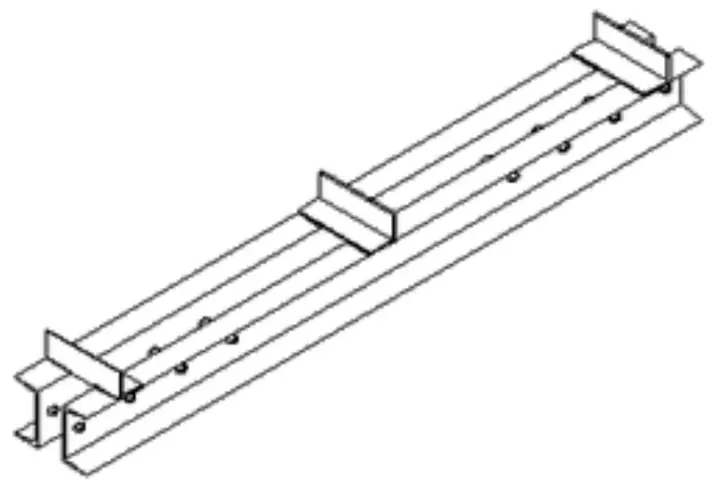

Are useful in holding the form work in place. These are made out of 'C channels held together by welding angles as shown in the diagram the length can be increased by using splice plates.

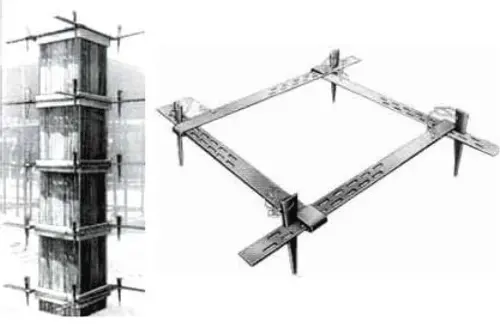

Ideally suited for a wide range of column sizes and are usable with both steel and timber shuttering. These clamps have no loose parts. Further interchange ability of arms of different sizes of column clamps makes them extremely versatile.
| Range (Minimum meters) | Range (Maximum meters) |
| 300 | 450 |
| 765 | 1070 |
| 650 | 1370 |

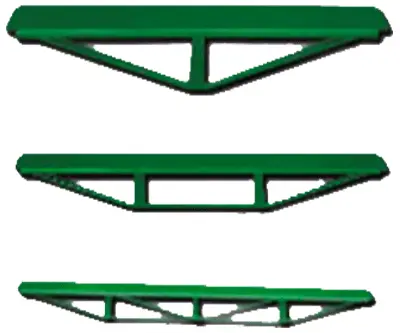

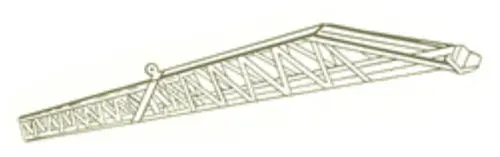

It is a supportive part that holds the weight of decking materials that is placed on the deck. The decking beam is supported on both the ends by adjustable props/ standard verticals. These beams are made of 2mm/2.5mm steel sheets bent into a box type and reinforced with lattice, made of steel rods. These come in various

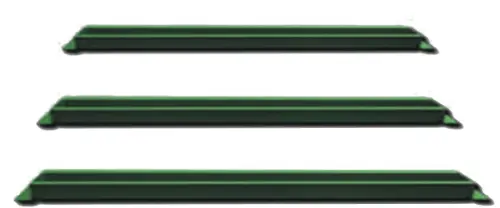

This is a secondary element placed at right angle to decking beams and are supported by it. Ply forms, steel forms are placed on the top to support the concrete poured.
Ideally suited for a wide range of column sizes and are usable with both steel and timber shuttering. These clamps have no loose parts. Further interchange ability of arms of different sizes of column clamps makes them extremely versatile.
| Size | Range (Minimum meters) | Range (Maximum meters) |
| ESO +ESI | 1.75 | 2.70 |
| SO+ESI | 2.40 | 3.45 |
| SO+SI | 2.46 | 4.15 |
| SO+LI | 3.05 | 4.75 |
| SO+LO - SI | 3.15 | 4.90 |
| LO-L1 | 3.15 | 5.50 |
